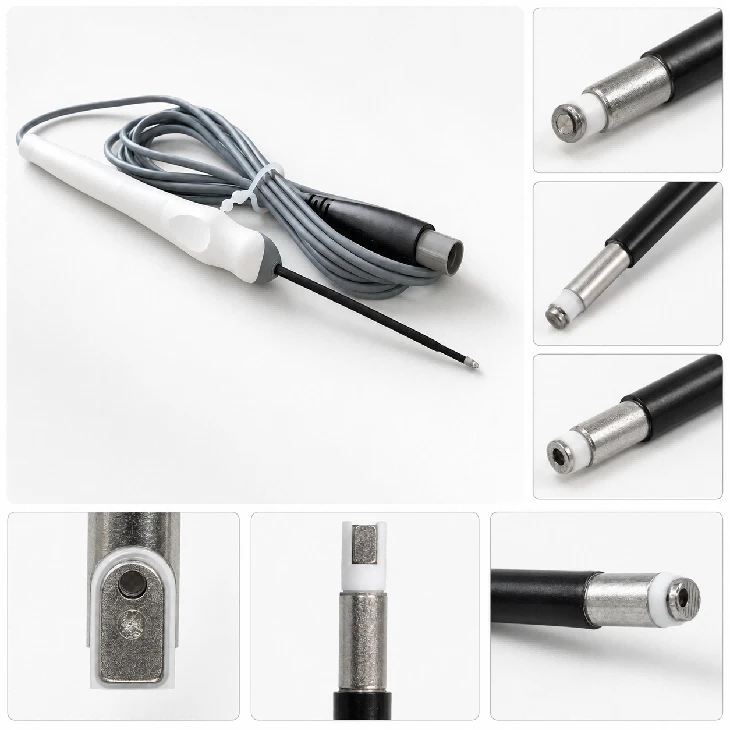

SPINE & UBE ELECTRODE PLATFORM Single-use Radiofrequency Spinal Surgery ProbeA straight, pen-style RF plasma electrode platform with six working-tip configurations for precise access, tissue ablation and coagulation in minimally invasive spinal procedures.
|
Procedure-oriented selection
Choose by tip angle, shaft size, working length, irrigation and generator interface. |
ONE PLATFORM, MULTIPLE ACCESS PROFILES
Designed around the spinal working corridor
The range combines needle, columnar and blade-shaped tips to support different approach angles and tissue-contact requirements. A slim, straight handle supports controlled rotation and positioning within restricted working spaces.
Tip-angle coverageStraight and angled profiles help match forward or lateral access requirements. |
Task-specific distal endsNeedle, columnar and blade designs provide distinct contact profiles for selection. |
Irrigation choiceBoth non-irrigated and irrigated configurations are available within the range. |
Generator matchingMultiple connector formats are available after generator and interface confirmation. |
MODEL SELECTION
Six distal-tip configurations
Compare the working profile first, then confirm the generator connector before ordering.

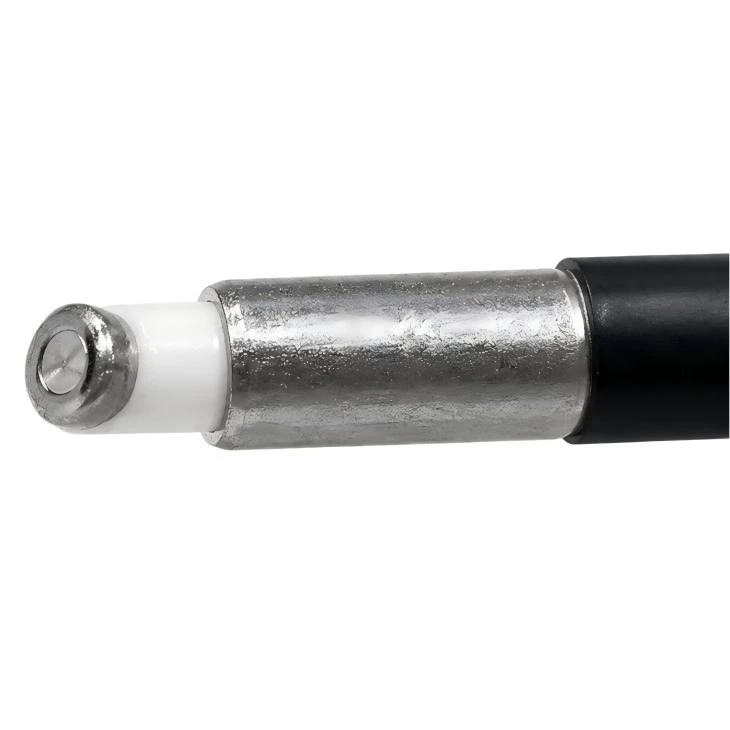

 DJZ0140-0430-degree single-needle tip
|

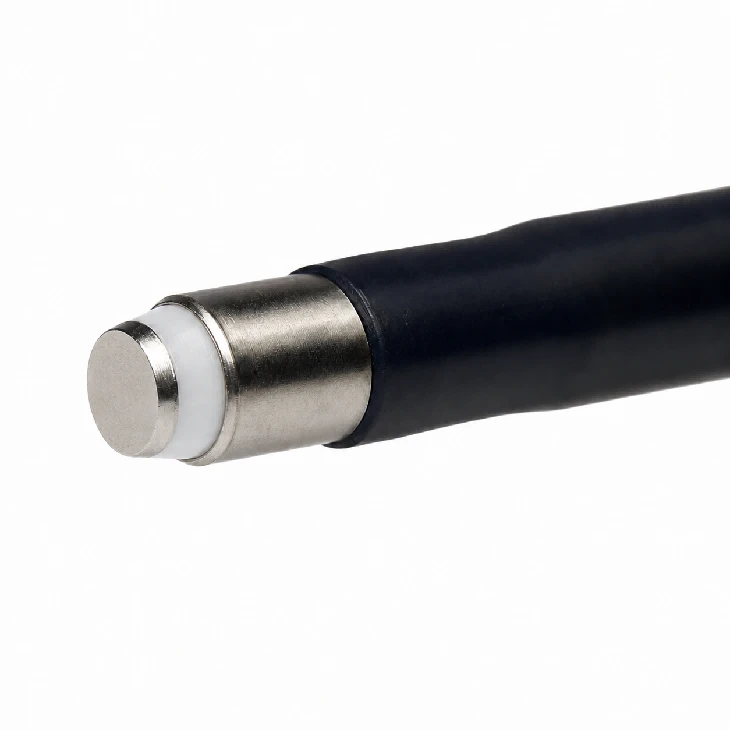

 DJZ0140-050-degree single-needle tip
|
||||||||||||

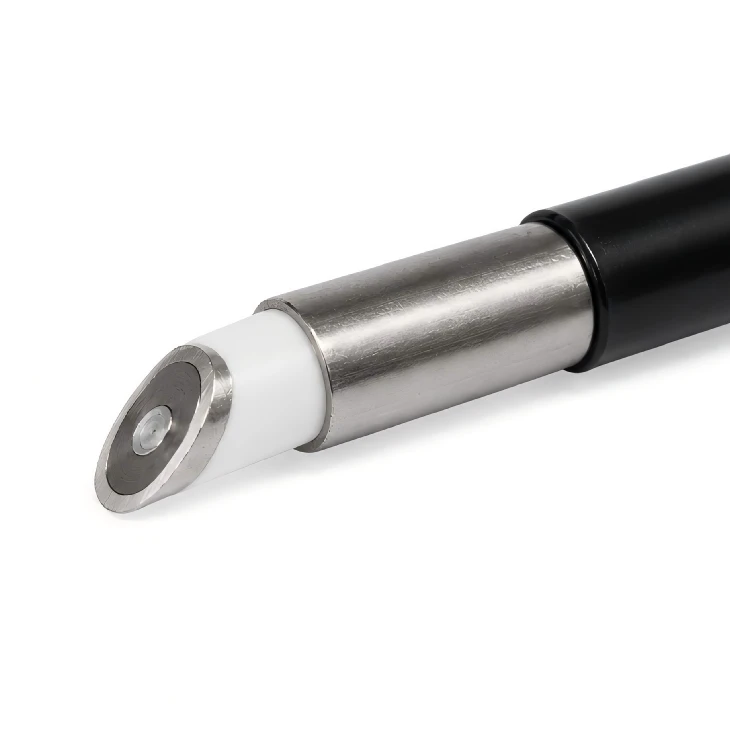

 DJZ1140-0645-degree blade tip
|

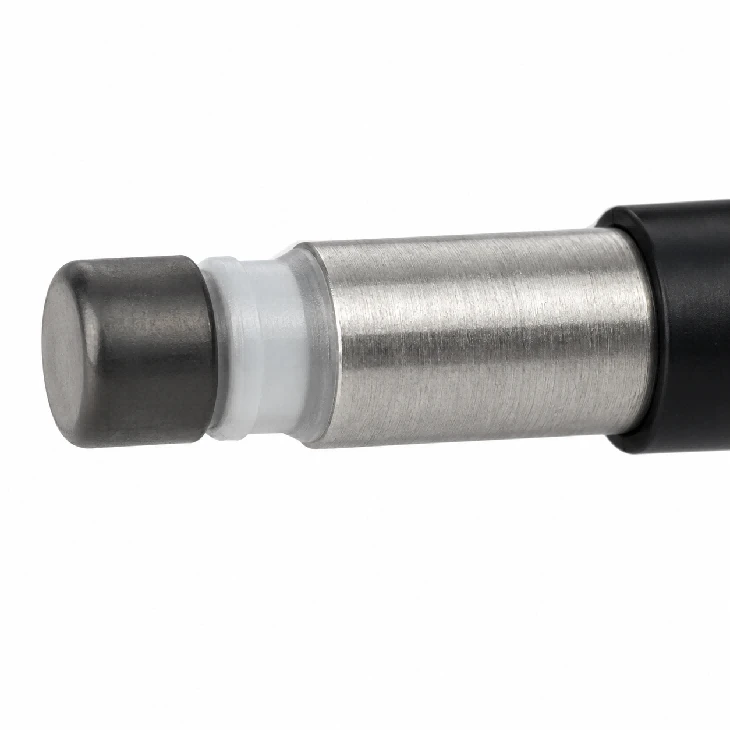

 DJZ1140-07Columnar tip
|
||||||||||||

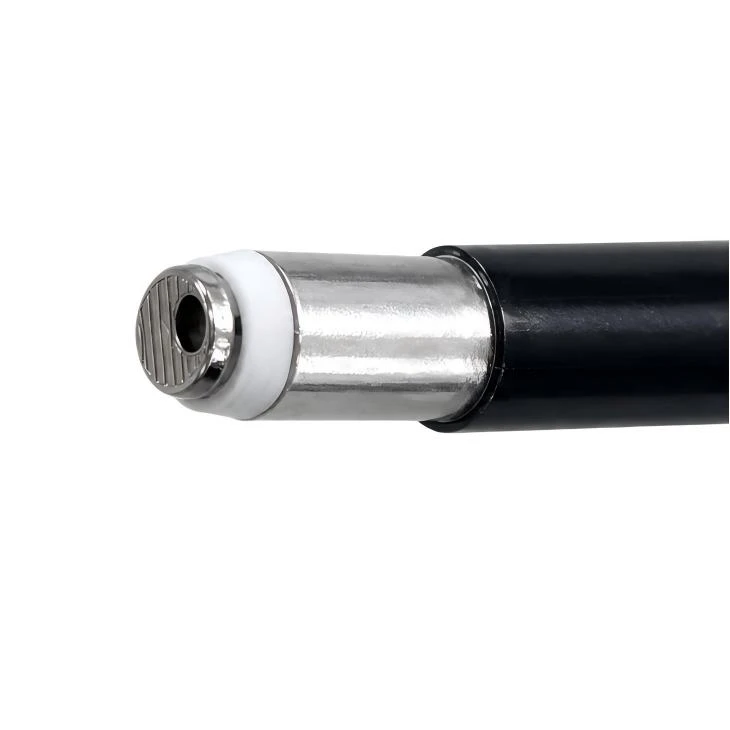

 DJZ1150-010-degree blade tip
|
 DJZ1165-0190-degree blade tip
|
Tip form, shaft diameter and working length may be evaluated for customization. Final availability is subject to technical confirmation.
|
CLINICAL APPLICATION RANGE Built for minimally invasive spine workflowsModel selection should be based on the intended procedure, target anatomy, access path and compatible RF generator. |
|
GENERATOR CONNECTION OPTIONS
Detailed interface reference
Connector appearance is shown for preliminary comparison only. Always provide the generator brand, model, nameplate and clear interface photos for final confirmation.
01
5-pin interface for GAOTON systems |
02
Interface for Forerunner systems |
|||||
03
6-pin interface - Korea configuration |
04
6-pin interface |
|||||
05
8-pin interface for Smith & Nephew Quantum 2 |
06
8-pin interface - alternate Quantum 2 configuration |
|||||
07
13-pin push-button interface for Quantum 2 |
08
14-pin interface |
|||||
09
27-pin interface for Smith & Nephew systems |
10
Interface for Johnson & Johnson systems |
|||||
11
4.0L banana plug |
12
4.0 mm banana plug |
|||||
13
2.5 mm banana plug |
14
High-frequency connector |
|||||
15
Bonss ENT system interface |
16
Bonss orthopedic system interface |
|||||
17
MECHAN ENT system interface |
18
Coblator 8-pin interface |
|||||
19
Stryker system interface |
20
8-pin interface for Smith & Nephew Quantum 2 |
Brand names indicate potential connector options, not automatic cross-compatibility. Electrical parameters, connector pinout and system requirements must be checked before supply.
ORDERING FAQ
What to confirm before quotation
How do I select the appropriate probe model?
Provide the intended spinal procedure, preferred tip profile and angle, required shaft diameter and working length, and whether irrigation is needed. We will compare these requirements with the available configurations.
Can the tip, length or irrigation configuration be customized?
Selected tip forms, working lengths, shaft sizes and irrigation options may be evaluated for customization. Feasibility, minimum order quantity and lead time are confirmed after technical review.
How is generator compatibility confirmed?
Please send the generator brand and model, a clear photo of the nameplate, and close-up photos of the interface. Connector shape alone is not sufficient for final confirmation.
Is the probe reusable?
No. This product is supplied for single use. Handling and disposal should follow the healthcare facility's procedures and applicable local requirements.
|
TECHNICAL SELECTION SUPPORT Send your procedure and generator detailsInclude the required tip, working length, irrigation preference, estimated quantity and generator interface photos. |
