External Fixation Systems

Your Professional External Fixation Systems Supplier

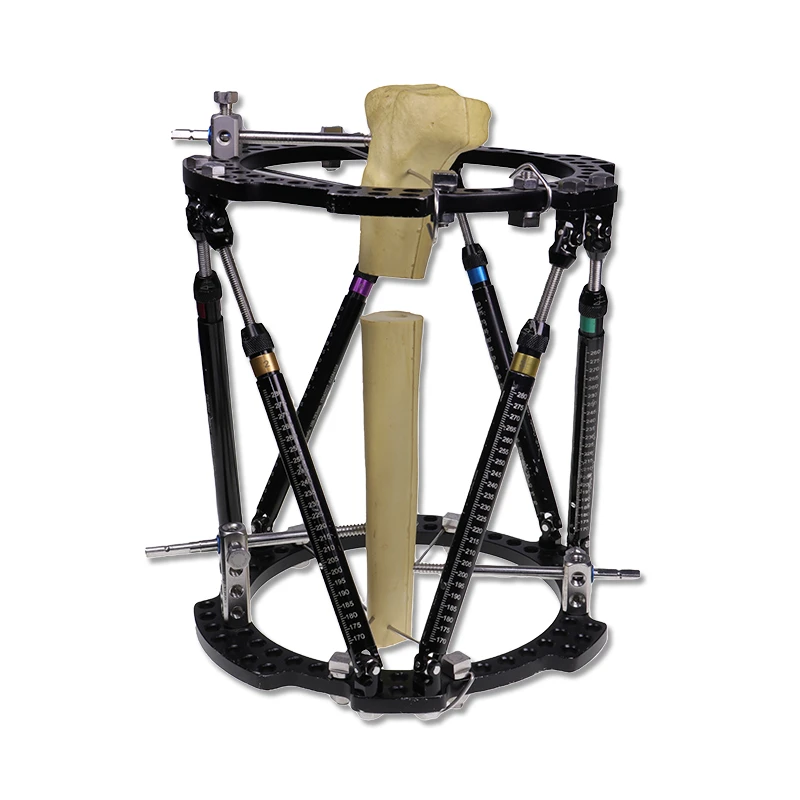

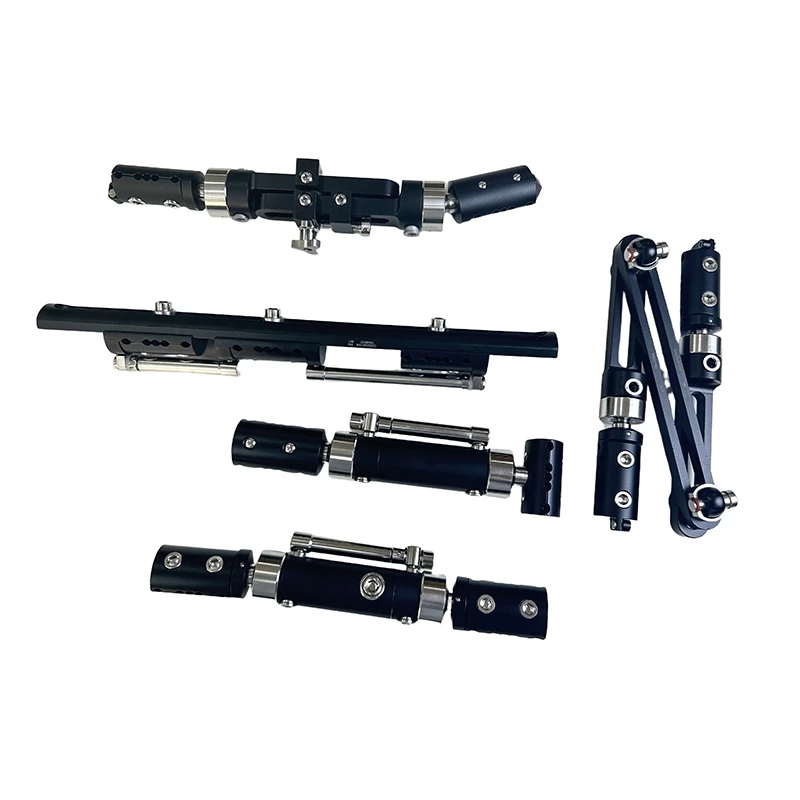

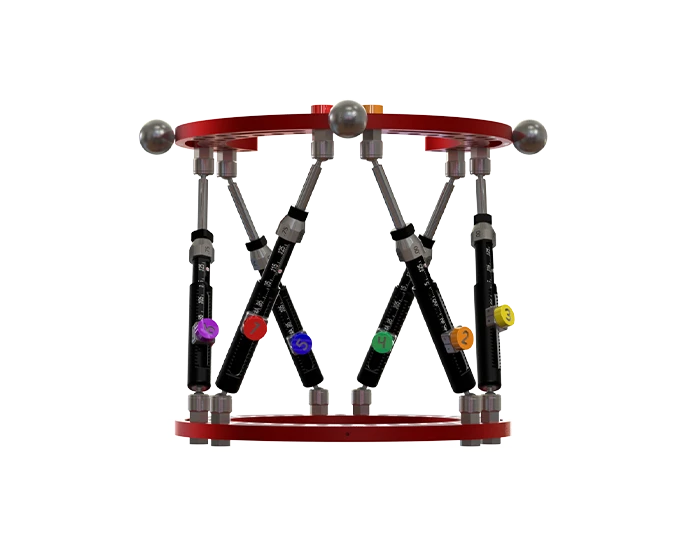

As a premier orthopedic manufacturer, we focus on the engineering and supply of specialized External Fixation Systems designed for trauma fixation, fracture stabilization, bone transport, and complex limb reconstruction. Our product portfolio encompasses a comprehensive selection of medical devices, including modular external fixator frames, monolateral systems, circular Ilizarov-type rings, precision bone pins, Schanz screws, Kirschner wires, and multi-functional connecting clamps. Engineered to meet the high-stakes demands of modern orthopedic surgery, these systems provide robust external structural stabilization, allowing global healthcare providers, distributors, and surgical teams to treat complex open fractures and severe musculoskeletal trauma with confidence.

Technical Parameters and Material Specifications

Parameter / Category	Specifications & Material Standards
Material Selection	Medical-Grade Titanium Alloy (Ti6Al4V ELI) Premium Stainless Steel (316LVM) Ultra-Lightweight Carbon Fiber Composites
Connecting Rod Diameters	4mm, 5mm, 8mm, and 11mm configurations (Supports pediatric upper extremity to adult lower extremity applications)
Bone Pin Diameters	2.0mm to 6.0mm
Bone Pin Thread Profiles	Self-drilling, self-tapping, and tapered profiles
X-Ray Translucency	Carbon fiber rods and rings provide excellent radiolucency for clear postoperative radiographic imaging and bone healing assessment
Mechanical Load Capacity	High torsional and axial stiffness configurations designed to withstand physiological loading during long-term treatment cycles

Core Manufacturing and Supply Advantages

Partnering with our manufacturing facility provides global buyers with distinct operational advantages that secure your position in the healthcare market:

Precision CNC Production: We utilize advanced multi-axis CNC machining centers to ensure perfect component interchangeability and smooth thread engagement.

Complete Material Traceability: Every batch of raw titanium, stainless steel, and carbon fiber is fully documented with mill test certificates from verified medical-grade suppliers.

Robust Production Capacity: Our streamlined facility manages high-volume production runs, mitigating inventory shortages and ensuring reliable lead times for large tender orders.

Rigorous Testing Protocols: Every design undergoes exhaustive mechanical stress testing, including static compression and dynamic fatigue evaluations, to eliminate the risk of intraoperative or postoperative component failure.

Clinical Indications and Application Scenarios

Our systems are engineered to address critical clinical challenges across diverse orthopedic and emergency trauma disciplines:

01/

High-Energy Trauma and Open Fractures: Providing immediate rigid stabilization where extensive soft-tissue damage prevents the use of internal plates or intramedullary nails.

02/

Limb Deformity Correction: Facilitating gradual, controlled mechanical distraction and alignment adjustment for pediatric and adult bone deformities.

03/

Infected Non-Unions and Bone Defects: Supporting segment transport and bone reconstruction following the radical debridement of infected bone tissue.

04/

Burn and Plastic Surgery Stabilization: Maintaining joint positioning and skeletal alignment without compromising access to extensive soft-tissue grafts or wound sites.

Flexible Customization and OEM Capabilities

We recognize that different global markets and hospital networks possess distinct instrument preferences and technique requirements, which is why we offer tailored manufacturing options:

Dimensional Modifications: Adjustment of connecting rod lengths, ring diameters, and pin thread profiles to match regional anatomical requirements.

Anodizing and Surface Finishes: Customized color-coding for components and clamps to simplify surgical identification and improve assembly efficiency in the operating room.

Private Labeling Services: High-precision laser etching for component identification numbers, specifications, and client-specified marking.

Tailored Kit Configurations: Grouping specific clamps, rods, and pins into custom-configured sterilization trays or trauma kits optimized for local market demands.

Quality Control and Compliance Infrastructure

Our manufacturing processes prioritize patient safety and consistent product quality through a comprehensive internal quality management system:

Strict Tolerance Inspections

Utilizing optical comparators and coordinate measuring machines to verify that every component matches exact engineering blueprints.

Surface Integrity Verification

Advanced passivation and automated deburring processes to eliminate sharp microscopic edges, preventing tissue irritation.

Documented Traceability

Maintaining a rigorous record chain from the initial raw material inspection through in-process adjustments to final packaging.

Cleanroom Packaging Operations

Final cleaning and packaging steps are executed in controlled environments to prevent bioburden contamination before delivery.

Packaging & Logistics

We ensure that our orthopedic systems arrive in pristine, hospital-ready condition through secure, standardized logistics workflows:

Standard Packaging

Components are individually sealed in double-layer, medical-grade peel pouches (tyvek/film) or protective foam slots to prevent scratches and maintain component integrity during transport.

Bulk & Kit Labeling

All packages feature clear, waterproof labeling containing part numbers, descriptions, batch numbers, materials, and production dates for effortless inventory management.

Export-Ready Crating

Outer shipping cartons are reinforced, moisture-resistant, and securely palletized to withstand long-distance maritime, air, or express freight.

Global Shipping Networks

We offer flexible Incoterms (EXW, FOB, CIF, DDP) and partner with major international carriers to guarantee timely deliveries for hospital tenders and distributor

Procurement Process

Getting a custom quote or placing a bulk order with us is structured and transparent:

Inquiry & Specification Submission: Contact our sales team with your product lists, OEM drawings, or specific hospital tender requirements.

Technical Evaluation & Quotation: Our engineering and sales departments assess your requirements and provide a detailed price quote, estimated lead times, and Minimum Order Quantities (MOQs).

Sampling & Prototyping (If Required): For custom or private-label designs, we manufacture and send physical samples for your team’s clinical and dimensional validation.

Contract Sign-off & Deposit: Upon approval, we formalize the purchase agreement and initiate production scheduling following deposit confirmation.

Mass Production & In-line Inspection: Our CNC facility executes the production run with continuous quality checkpoints at every manufacturing phase.

Final Quality Control & Logistics Release: Products undergo final cleaning, cleanroom packaging, and rigorous QA sign-off before being dispatched to your specified destination.

FAQ

Q: What is the Minimum Order Quantity (MOQ) for your external fixation components?

A: For our standard catalog items (such as standard Schanz pins, clamps, and rods), we offer highly flexible MOQs to accommodate distributors. For custom OEM designs or specific color-anodized configurations, a dedicated MOQ applies based on the complexity of the component. Please contact our team for a tailored quote.

Q: Can you provide your systems as pre-configured, sterile trauma kits?

A: Yes. We offer both non-sterile bulk components (which can be arranged in customized sterilization trays) and pre-packed, sterile kit configurations. Our cleanroom facilities can assemble specific combinations of pins, clamps, and rods into a single, unified trauma package according to your market's exact needs.

Q: How do your carbon fiber materials compare to traditional metal components?

A: Our high-performance carbon fiber rods and circular rings provide a superior strength-to-weight ratio compared to stainless steel. Crucially, carbon fiber is completely radiolucent (X-ray transparent). This allows orthopedic surgeons to clearly evaluate bone alignment and callus formation under fluoroscopy or standard X-rays without the visual obstruction caused by metal frames.

Q: Are your external fixators compatible with other major orthopedic brands?

A: Our standard line utilizes globally accepted connecting rod diameters and pin clamping mechanisms, which align with major international brands for excellent modular compatibility. If you require absolute interchangeability with a specific proprietary system, we can easily achieve this through our custom OEM services.

We're well-known as one of the most reliable external fixation systems manufacturers and suppliers in China. Please rest assured to wholesale high quality external fixation systems made in China here from our factory. We also accept customized orders.
