Product Overview

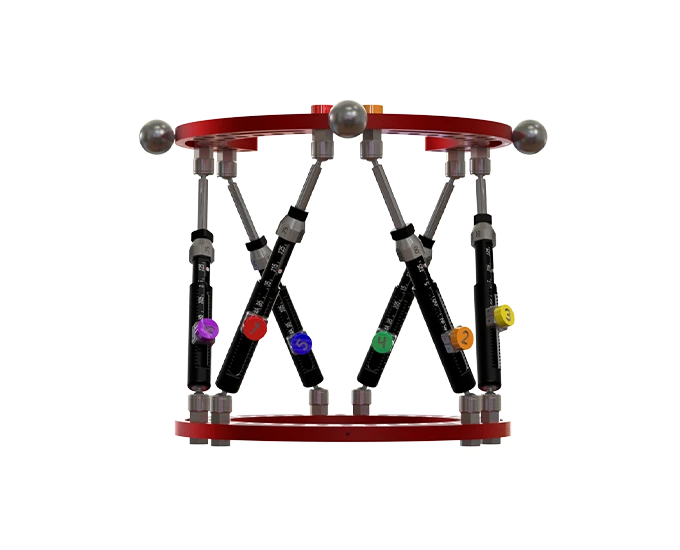

The Ring Fixation System is a modular external fixation platform engineered for the treatment of complex orthopedic conditions and high-energy trauma. The system utilizes circular and semi-circular rings connected via adjustable rods, struts, and clamps to build a rigid external support frame around the affected limb.
Compared to traditional linear external fixators or internal fixation plates, the multi-planar circular structure provides unparalleled mechanical stability. It gives orthopedic surgeons the precise control needed for gradual postoperative bone transport, distraction osteogenesis, and angular alignment corrections.
Technical Specifications
|
Item |
Specification / Details |
|
Product Classification |
Circular External Fixation System (Modular Circular Type) |
|
Material Composition |
Medical-Grade Titanium Alloy (Ti-6Al-4V) / Stainless Steel (316LVM) |
|
Ring Diameters (Full/Half) |
80 mm to 240 mm (available in 10 mm or 20 mm increments) |
|
Wire/Pin Compatibility |
Kirschner wires (1.5 mm, 1.8 mm, 2.0 mm) and Schanz screws (4.0 mm, 5.0 mm, 6.0 mm) |
|
Component Modularity |
Fully compatible with telescopic rods, threaded rods, and multi-pin clamps |
|
Sterilization Protocols |
Delivered non-sterile; compatible with standard autoclave sterilization (134 degrees Celsius) |
|
Manufacturing Standards |
Compliant with ISO 13485 quality management systems |
|
Production Capabilities |
Full support for specialized contract manufacturing and customized production |
Core Product Features
Highly Adaptable Modular Architecture: The frame layout can be tailored precisely to the patient's specific anatomical dimensions and injury patterns. Using a comprehensive selection of rings, arches, and cross-links, surgeons can build custom multi-level constructs that cross complex joint spaces or isolate localized bone segments.
Multi-Directional Mechanical Stability: The circular ring configuration transforms shear forces into compressive axial forces, promoting natural bone healing according to biological fixation principles. The multi-planar arrangement of transfixion wires ensures balanced load distribution and superior torsional resistance.
Micro-Adjustable Displacement & Correction: Equipped with graduated telescopic struts and continuous threaded rods, the system allows for controlled, incremental adjustments over time. This enables precise corrections in axial translation, limb lengthening, angular deformity reduction, and targeted compression or distraction at the osteotomy site.
Extended Component Interchangeability: The system features standardized thread pitches and connection interfaces across all rings, hinges, sliders, and wire-fixation bolts. This universal compatibility simplifies intraoperative adjustments and minimizes the time spent in the operating theater.
System Structure & Component Breakdown
Circular & Semi-Circular Rings
Function: High-strength circumferential bands with uniform parametric holes.
Clinical Role: Form the structural foundation; distribute loads evenly around the limb.
Connecting Rods & Struts
Function: Threaded steel/titanium bars and adjustable telescopic links.
Clinical Role: Establish vertical distance between rings; allow manual length and angle adjustments.
Wire & Pin Fixation Clamps
Function: Slotted bolts, serrated washers, and multi-pin fixation blocks.
Clinical Role: Securely anchor transfixion wires and bone screws to the outer ring profile.
Schanz Screws & K-Wires
Function: Self-drilling, self-tapping cortical pins and tensioned wires.
Clinical Role: Penetrate bone cortices to transfer mechanical loads directly to the frame.
Hinges & Universal Joints
Function: Multi-axis rotation joints and angular correction blocks.
Clinical Role: Enable joint mobilization and progressive angular deformity correction.
Clinical Applications
The Ring Fixation System provides critical therapeutic interventions across several specialized orthopedic disciplines:
Trauma & Fracture Care
- High-energy open fractures with extensive soft-tissue degradation.
- Highly comminuted intra-articular or peri-articular fractures where internal plating is contraindicated.
- Severe pelvic and unstable polytrauma stabilization.
Limb Reconstruction & Lengthening
- Post-traumatic or congenital limb length discrepancies requiring distraction osteogenesis.
- Segmental bone defects resulting from severe trauma or radical tumor resection via bone transport.
- Management of hypertrophic or atrophic nonunions and malunions.
Deformity Correction
- Complex multi-planar pediatric and adult limb deformities including varus, valgus, procurvatum, and recurvatum conditions.
- Gradual joint contracture corrections and arthrodiatasis procedures.
- Charcot arthropathy and complex foot or ankle reconstructions.
Material Excellence & Regulatory Manufacturing Quality
Our Ring Fixation Systems are manufactured using premium medical grade alloys, selected for their optimized strength-to-weight ratios, excellent fatigue life, and proven biocompatibility profiles.
Advanced CNC Machining: Every ring, bolt, and clamp is processed via state-of-the-art computer numerical control milling to guarantee microscopic tolerances and uniform thread execution.
Rigorous Surface Passivation: All components undergo specialized surface treatments to increase corrosion resistance and minimize bacterial adhesion risks in long-term external fixation scenarios.
Traceable Quality Control: Production facilities operate under comprehensive quality management protocols. Every manufacturing batch undergoes coordinate measuring machine inspections and tensile strength validation to ensure perfect compliance with international orthopedic device expectations.
Surgical Instrumentation & System Integration
- To ensure seamless implementation in the operating suite, we offer dedicated instrument trays tailored specifically for our Ring Fixation Systems.
- Tensioning Units: Calibrated wire tensioners to ensure exact, reproducible force application on transfixion wires.
- Ergonomic Wrenches & Drivers: Color-coded structural tools optimized for rapid bolt tightening and intraoperative ring adjustments.
- Modular Sterilization Trays: Heavy-duty, anodized aluminum cases designed to organize components efficiently for steam sterilization cycles.
Packaging & Global Logistics
Protective Technical Packaging: Each component is sealed individually in double-layered, puncture-resistant polymer bags or protective cases to prevent surface abrasions during transit.
Comprehensive Batch Labeling: Packages feature high-contrast, scannable barcodes with complete batch tracking numbers, materials identification, and clear structural dimensions.
Secured Global Shipping: Bulk orders are packed into reinforced, moisture-barrier export cartons and palletized to guarantee structural integrity via air, sea, or multimodal global freight routes.
FAQ
Q: What raw materials are utilized in the fabrication of the Ring Fixation System components?
A: The rings and structural elements are primarily manufactured from high-strength Titanium Alloy or premium Stainless Steel. Certain high-demand assemblies also offer specialized options to achieve maximum radiolucency and reduced overall weight for enhanced patient mobility during recovery.
Q: Are the components of this system interchangeable with standard circular configurations?
A: Yes, the system is engineered following traditional sizing metrics and thread pitches. The rings, threaded rods, and fixation bolts feature standardized spacing and dimensions, allowing them to integrate cleanly with most conventional circular external fixation elements used in hospitals worldwide.
Q: What support options are available for customized product configurations?
A: We provide comprehensive custom production services based on specific engineering drawings or physical reference samples. Our technical teams can adjust ring diameters, custom-tailor hole patterns, modify strut adjustment lengths, or produce dedicated components to match your precise market needs.
Q: How is the mechanical integrity and load-bearing safety of the external frame verified?
A: Every structural component goes through intense mechanical stress testing, including static compression, torsional resistance testing, and fatigue life evaluation. This ensures that the fully assembled frame can withstand the physiological loads and stresses associated with long-term limb reconstruction and early weight-bearing therapies.
